Possibly the most best Verilog-Based DPI and MIPI-DSI FPGA Examples

If this project is constructive, welcome to donate a drink to PayPal.

or

paypal.me/briansune

This project aimed to support MIPI or DPI I/F off-the-shelf LCD/TFT display.

Expected FPGA Support

1) Xilinx - 7 series (Currently tested on Kintex 7 & Artix 7) 2) Xilinx - 6 series (Currently tested on Spartan 6) 3) Xilinx - Ultrascale+ / Ultrascale (Currently tested on ZYNQMP) 4) Altera - Cyclone IV (🔜 working on hardware) 5) Altera - Cyclone V (🔜 working on hardware) 6) Anlogic - EG4 series (🔜 working on hardware) 7) Anlogic - DR1 series (🔜 working on hardware)

a) In the follow examples, Xilinx 6 series, 7 series, ultrascale+ series should able to support as much MIPI display as possible. b) Xilinx 6 or 7 would require resistor network to convert LVDS to SLVS. c) Successful cases are demonstrated on three Xilinx FPGA families “Spartan”, “Kintex”, “Artix”, and “ZYNQ Ultrascale+”. d) It is confident to say this pure Verilog-based MIPI DSI design is stabled and matured enough to merge onto any FPGA with serialization feature.

Read First !

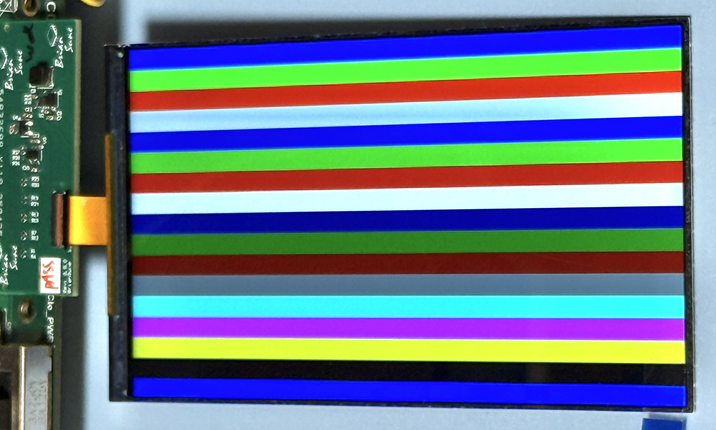

Please study the example 5.5” LCD with LCD driver HX8399C.

This example provided detail resistor-network vs MC20902 design, which is aligned with Xilinx doc. “XAPP894”.

The resistor-network is not re-simulated via IBIS simulator, so if you really concern on SI then do it as your will.

Commonly Asked Questions

1) Q: Do this design only work on Xilinx 7-series? A: There are example in Ultrascale, and other non-MIPI DSI supported FPGA brand tested internally. 2) Q: Why there are no brand xxx FPGA given? A: Because either the brand xxx either I don’t have it or it is tested internally but not worth to recreate new repositories. 3) Q: Can brand xxx FPGA support 1080p, 2k, 4k etc A: If you understand how MIPI-DSI video mode works, this question won’t even exist from first place!!! 4) Q: Can this Verilog-based HDL design work on brand xxxx. A: Very high chances, because the inherent design don’t rely on IPs nor any DPHY, it is pure MACROs and HDL.

If there are any technical questions, please contact via Email: briansune@gmail.com

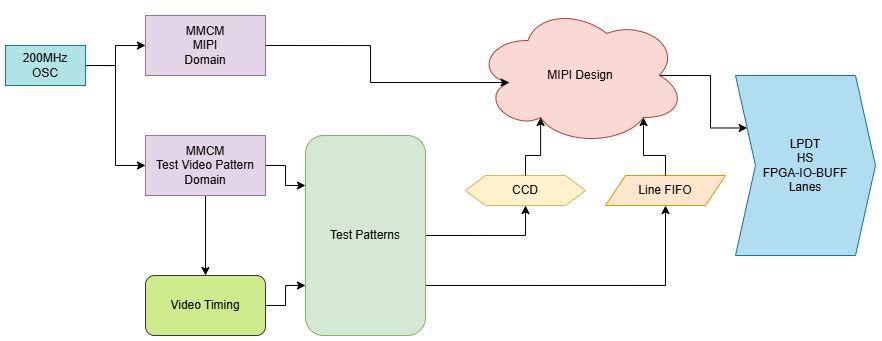

Video Test Pattern Top Block-Diagram

A Full Resources Report under Kintex-7 XC7K325T (Vivado 2024.2)

Full-Report

Tested Xilinx Tools

1) Vivado 2020.2 - Original Develop Environment 2) Vivado 2024.2 - Updated Environment (No Modification is Found on HDL files)

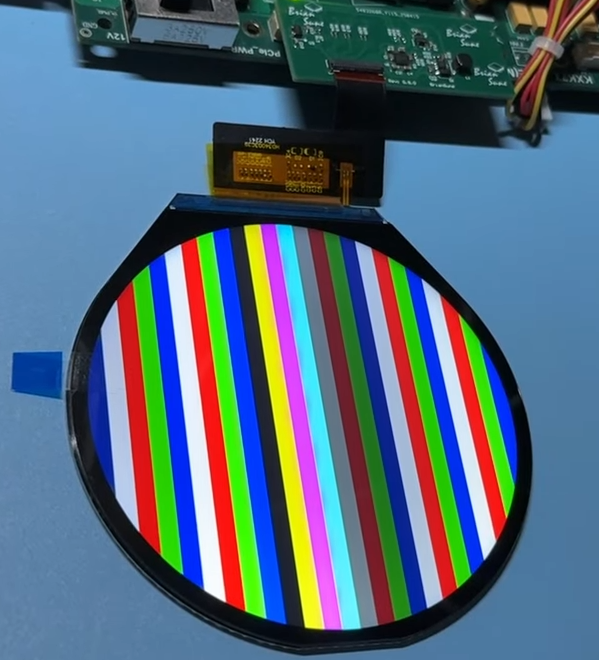

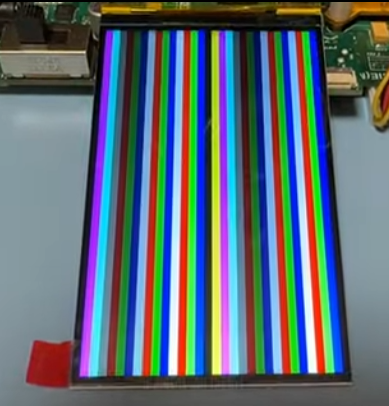

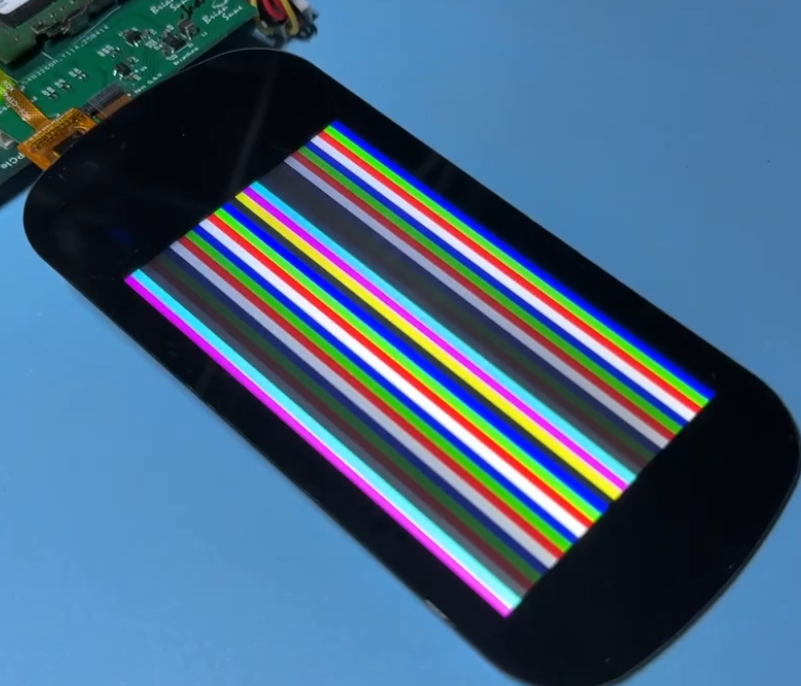

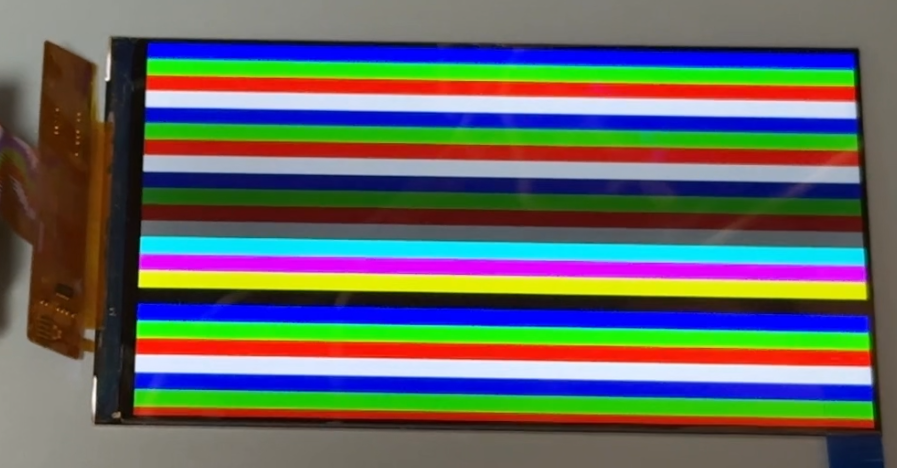

Display Examples

Remarks: “V” Video Mode, “C” Command Mode

Idx	Display	Status	I/F	Driver IC	Lane #	Mode	Project Link	Tested FPGA	IDE	FPS	W,H,BPP

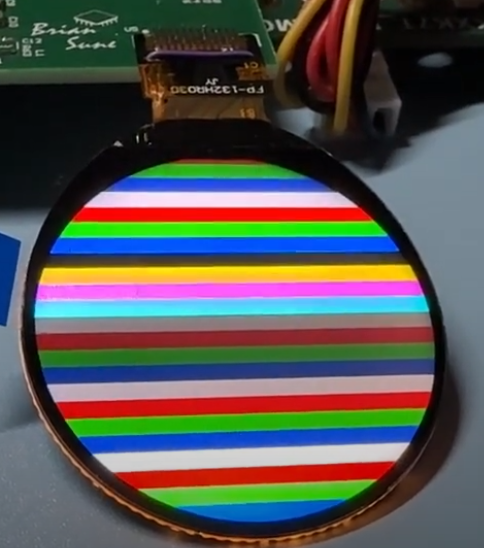

1		🟢 DONE	MIPI	GC9C01	1	C	ZJY132R-IG03	K7,ZU	Vivado 2024.2	60	360,360,[24]

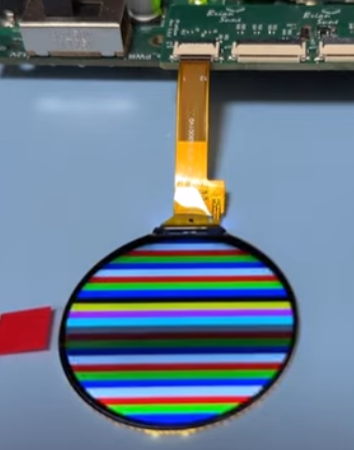

2		🟢 DONE	MIPI	ST7797	1	V	DT160BQ-C12-01	K7	Vivado 2024.2	60	400,400,[16,24]

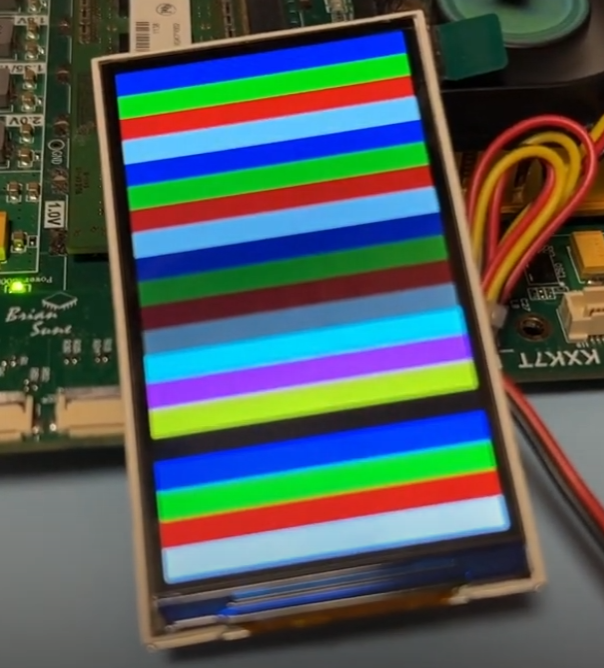

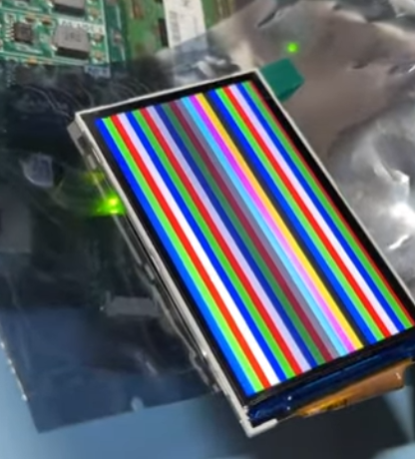

3		🟢 DONE	MIPI	ST7701S	2	V	CY300H4003	K7	Vivado 2024.2	60	360,640,[16,24]
4		🟢 DONE	MIPI	ST7701S	2	V	T397B5-C24-02	A7,K7	Vivado 2024.2	60	480,800,[16,24]

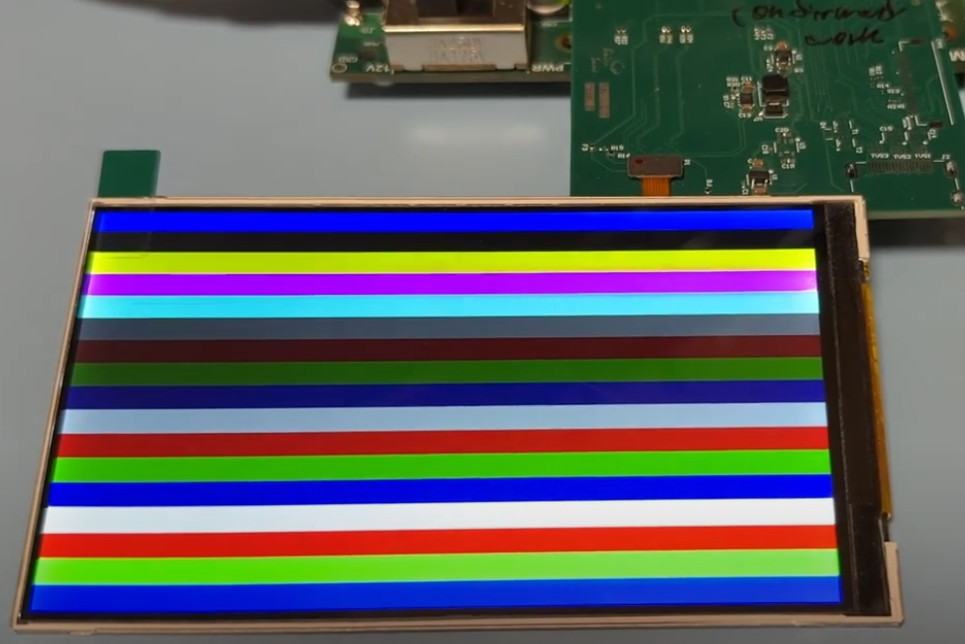

5		🟢 DONE	MIPI	NT35516	2	V/C	INX4.5	A7,K7	Vivado 2024.2	60	540,960,[16,24]

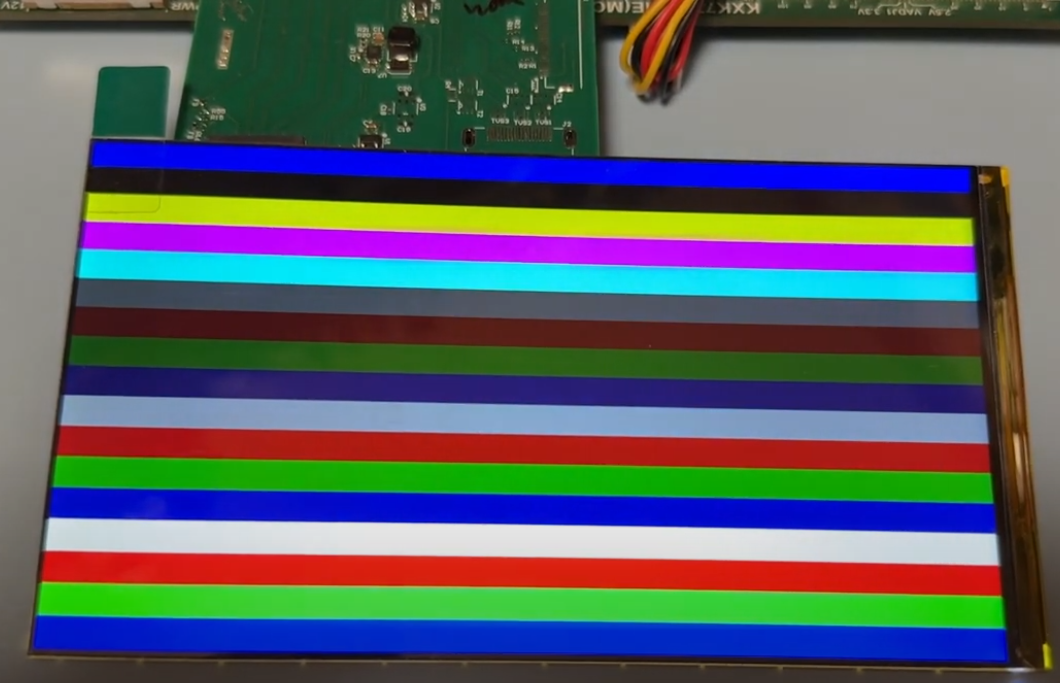

6		🟢 DONE	MIPI	HX8399C	4	V	AML055T012A K7 AML055T012A S6	S6,A7,K7	Vivado 2024.2	50,60	1080,1920,[16,24]
7		🟢 DONE	MIPI	ST7701S	2	V	HXR397HS25PIN	K7	Vivado 2024.2	60	480,800,[16,24]
8		🟢 DONE	MIPI	R61322	4	V	DXQ5D0039	K7	Vivado 2024.2	60	1080,1920,[24]
9		🟢 DONE	MIPI	JD9522Z	4	V	HD55017C31	K7	Vivado 2024.2	60	1080,1920,[16,24]

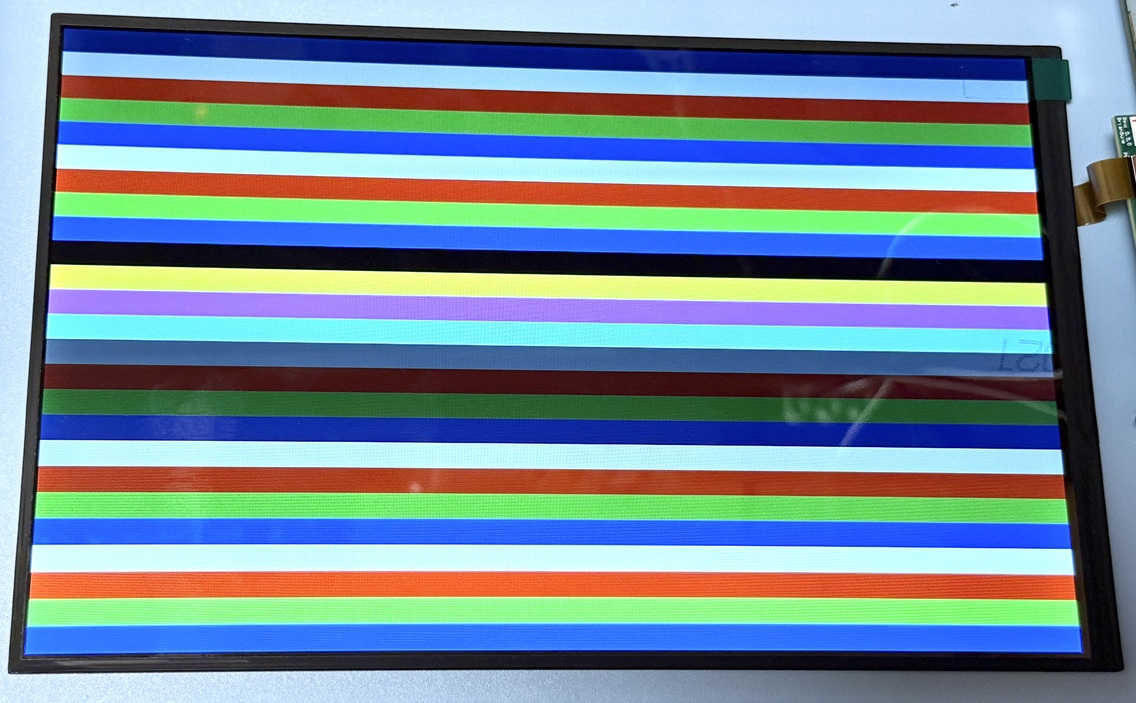

10		🟢 DONE	MIPI	JD9365DA-H3	4	V	MX101BA13	K7	Vivado 2024.2	60	800,1280,[16,24]
11		🟢 DONE	MIPI	JD9365DA-H3	3	V	HD34003C39	K7	Vivado 2024.2	60	800,800,[16,24]
12		🟢 DONE	MIPI	ST7701S	2	V	HXR030HSD40PIN	K7	Vivado 2024.2	60	360,640,[16,24]

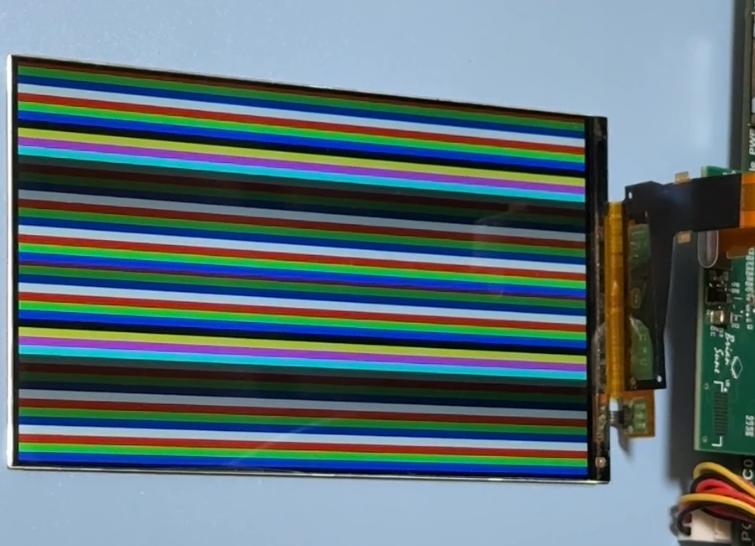

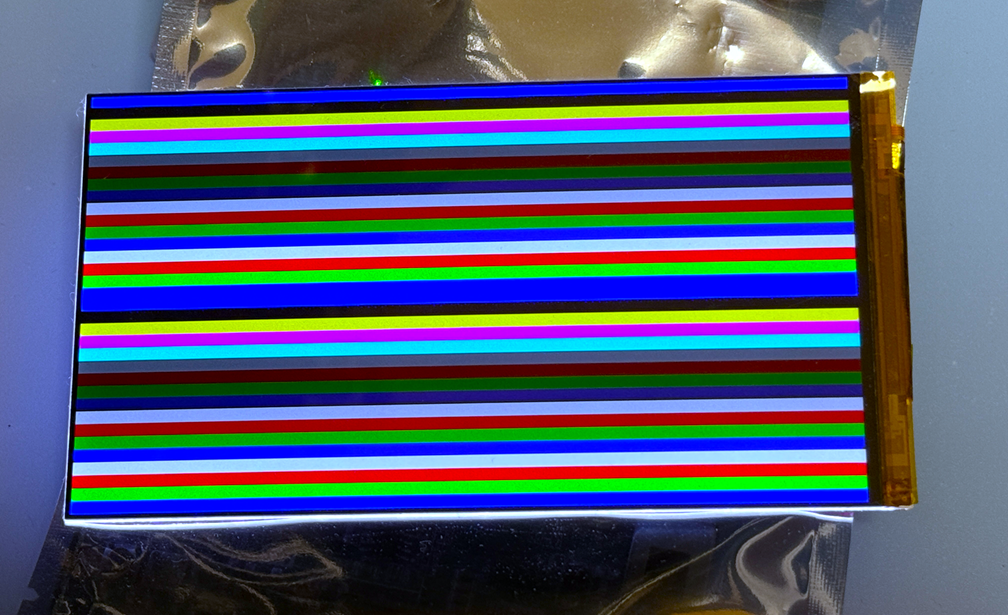

13		🟢 DONE	MIPI	R63419	4,4	V	LS055R1SX04	K7	Vivado 2024.2	60	720x2,2560,[24]
14		🟡 1080p	MIPI	NT35950	4,4	V	AML055D105G	K7	Vivado 2024.2	60	1080,1920,[24]

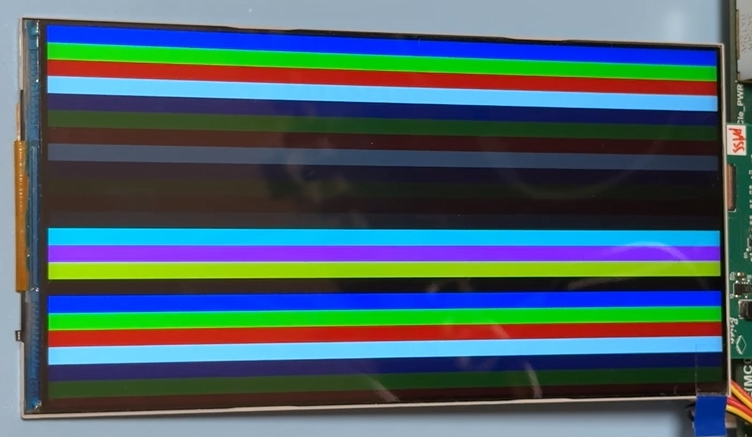

15		🟢 DONE	MIPI	GC9702P	4	V	HD69002C31	K7	Vivado 2024.2	60	720,1440,[24]

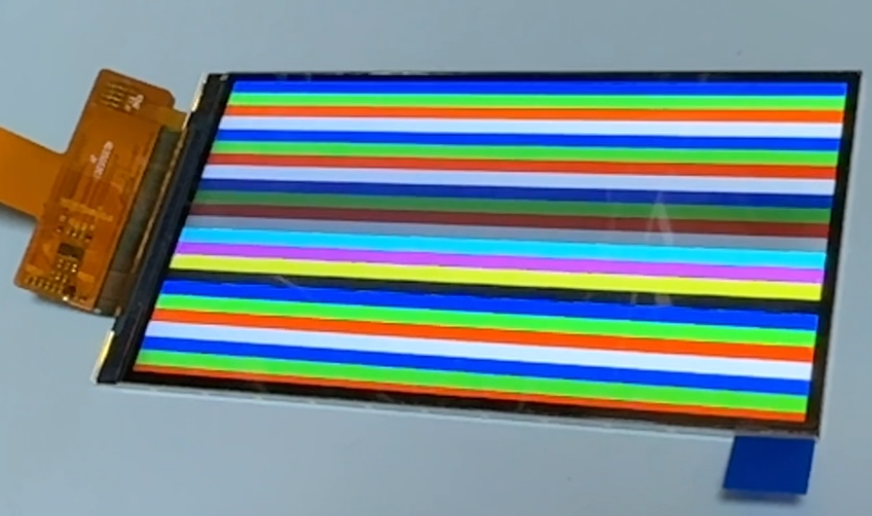

16		🟢 DONE	MIPI	FL7703NP	4	V	HD35052C31	K7	Vivado 2024.2	60	720,1280,[16,24]

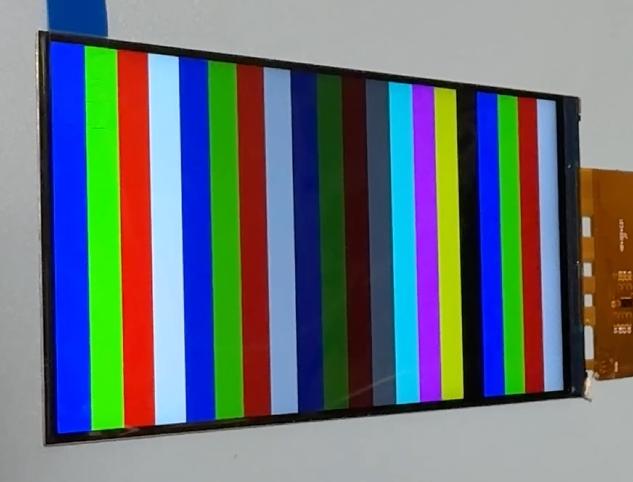

17		🟢 DONE	MIPI	NV3051F1	4	V	HD41004C31	K7	Vivado 2024.2	60	720,1280,[24]

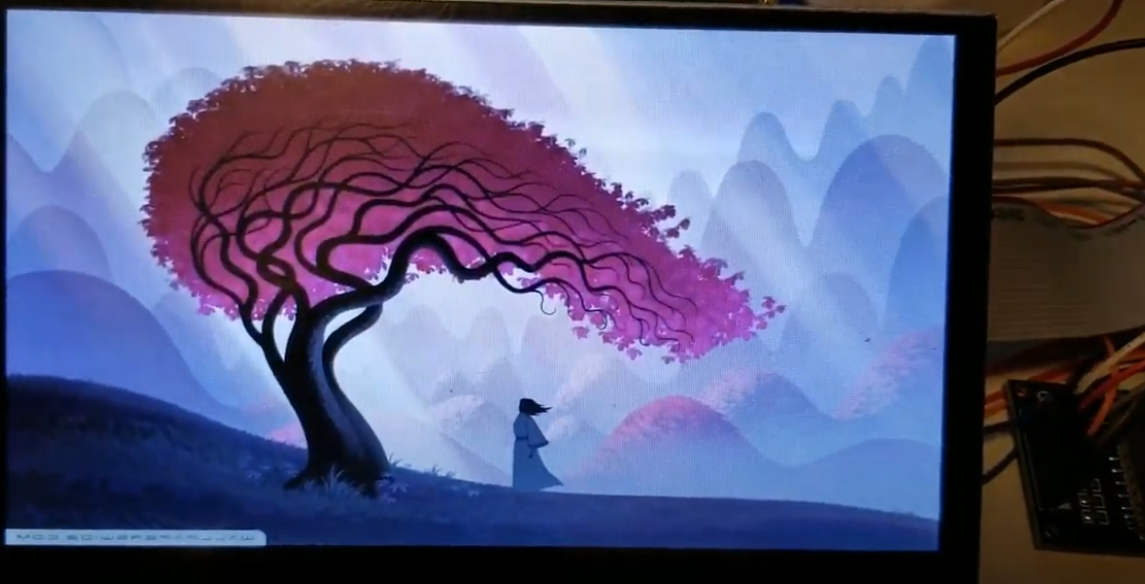

18		🟢 DONE	DPI	AT070N92/94	x	V	AT070N92/94	MAX II	Quartus	60	800,480,[24]

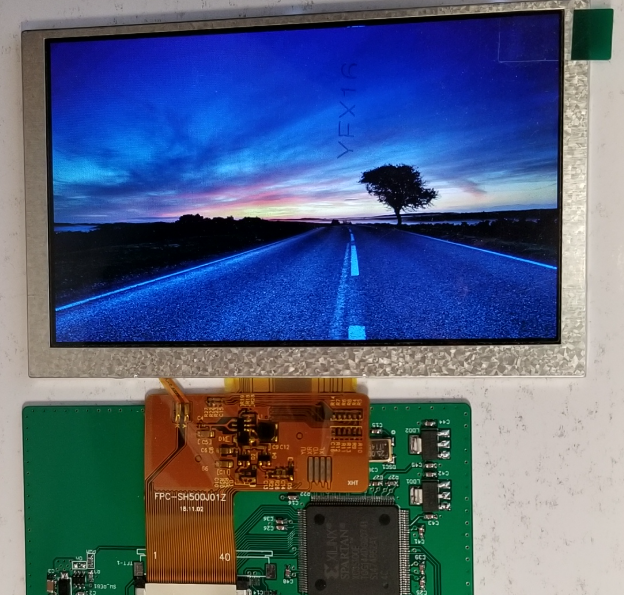

19		🟢 DONE	DPI	AT070N92/94	x	V	AT070N92/94	S3	ISE 14.7	60	800,480,[24]

Tested LCD Driver IC(s)

✅ No Issue / Supported

❎ Vendor confirm it is not supported or silicon issue

✖ Datasheet clearly mentioned not support

❔ No Datasheet is found

❌ Datasheet clearly mentioned support, but abnormal display

🚨 Not recommended

🚫 Command Mode supported, color depth work differently

Idx	IC Company	Driver IC	16bpp	24bpp	Stable
1	RENESAS SP	R61322	✖️	✅	✅
2	RENESAS SP	R63419	✖️	✅	✅
3	Sitronix	ST7797	✅	✅	✅
4	Sitronix	ST7701S	✅	✅	✅
5	JADARD	JD9365DA-H3	✅	✅	✅
6	Forcelead	FL7703NP	✅	✅	✅
7	Novatek	NT35516	✅	✅	✅
8	Novatek	NT35950	❔	✅	✅
8	Fitipower	JD9522Z	✅	✅	✅
9	Himax	HX8399-C	✅	✅	✅
10	GALAXYCORE	GC9C01	🚫	🚫	✅
11	GALAXYCORE	GC9702P	❌	✅	🚨
12	New Vision	NV3051F1	❎	✅	✅
